Compressed Air Dryers (Refrigeration type)
Compressed Air Dryers (Refrigeration type) - SARMAK - SRD-S
FEATURES: Control Panel, Aluminum Heat Exchanger, Air Cooled, Inlet Filter (1 micron-0.5 mg/m3), Discharge Filter (0.01 micron-0.01 mg/m3) included.
ADVANTAGES OF THE SYSTEM
• Electronic control panel
• Energy-saving aluminum heat exchanger module
• Hot gas by-pass valve
• Efficient cooling gas
• Integrated Inlet and Discharge filters (up to SRD-S 975 model)
NOMINAL CONDITIONS
• 25°C ambient temperature
• 35°C inlet air temperature
• 7 bar inlet air pressure
• 3°C pressure dew point
MAXIMUM CONDITIONS
• 50°C ambient temperature
• 60°C inlet air temperature
• 16 bar inlet air pressure

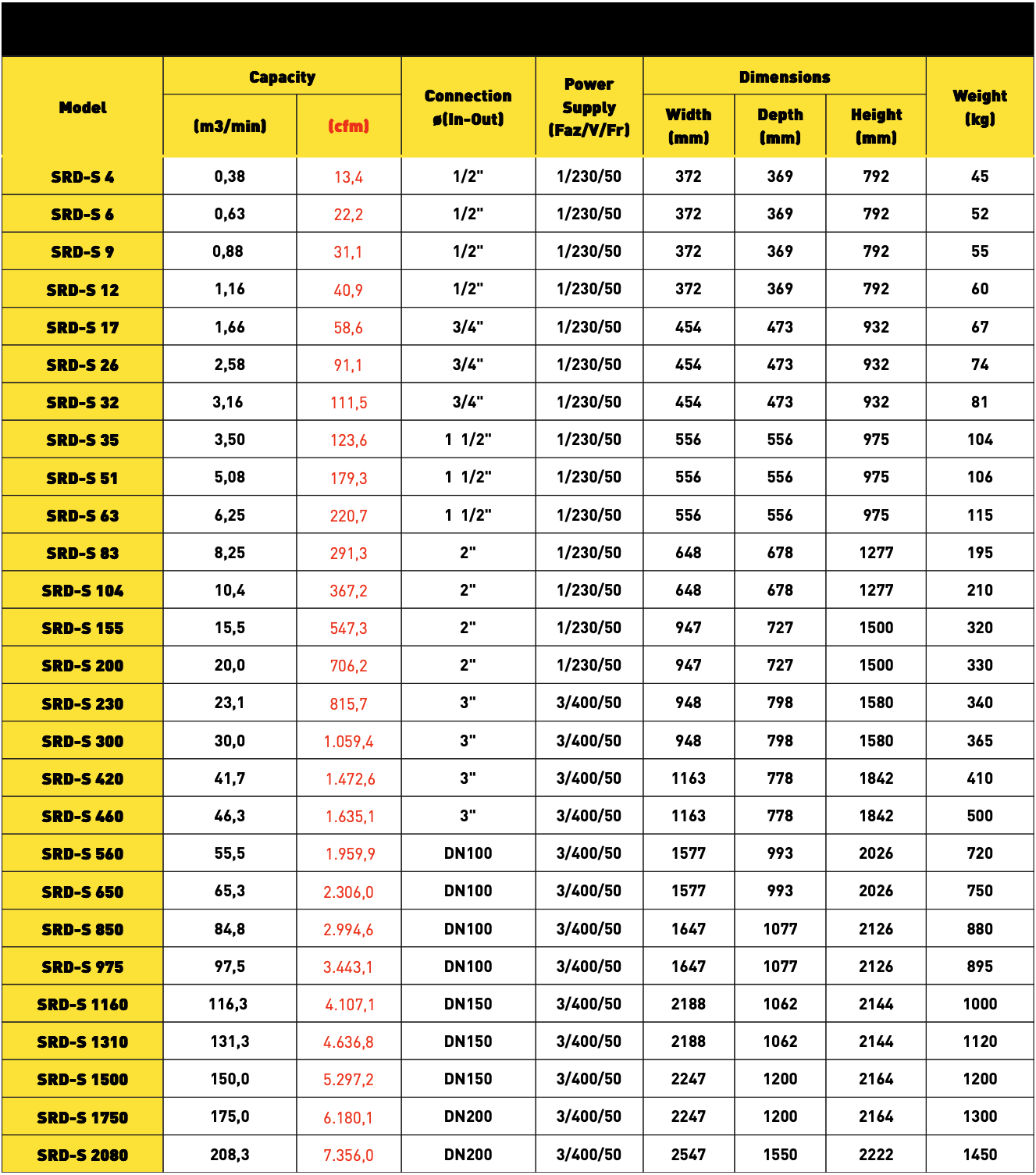

Technical parameters
Gallery
Click to enlarge
